Dash work

 Post Reply Post Reply
Author
Netdewt View Drop Down
Senior Member
Senior Member
Avatar

Joined: February-15-2010
Location: Minneapolis
Status: Online
Points: 222
Post Options Post Options   Thanks (0) Thanks(0)   Quote Netdewt Quote  Post ReplyReply Direct Link To This Post Topic: Dash work
    Posted: October-27-2024 at 4:36pm

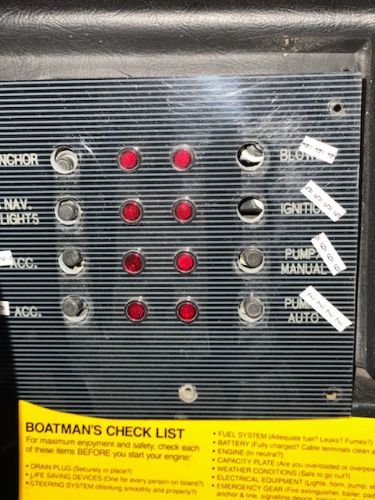

I’ve been sitting in this project for a long time. My sub dash panel is cracking to pieces, so after years of looking I finally got a replacement. Today I went to dive in and I don’t see a way to get the little red lights out without totally re-wiring. I’ll take suggestions! Not sure what to do now.


1989 Ski Nautique 2001, 940 hours
Back to Top
KENO View Drop Down
Grand Poobah
Grand Poobah


Joined: June-06-2004
Location: United States
Status: Offline
Points: 11088
Post Options Post Options   Thanks (0) Thanks(0)   Quote KENO Quote  Post ReplyReply Direct Link To This Post Posted: October-27-2024 at 7:06pm
You have to cut all the indicator light wires, pull out the lights from the front and stick them in the new panel and do a buttload of splicing with butt connectors or your choice of ways to hook the wires back together.

Not a fun job Wink

Back to Top
Netdewt View Drop Down
Senior Member
Senior Member
Avatar

Joined: February-15-2010
Location: Minneapolis
Status: Online
Points: 222
Post Options Post Options   Thanks (0) Thanks(0)   Quote Netdewt Quote  Post ReplyReply Direct Link To This Post Posted: October-27-2024 at 8:12pm
I was hoping the lights had some secret disconnect.

Maybe it’s easier to swap to rocker style switches? Unless these push button ones are special in some way. Perhaps the wires would not reach in the switch was less deep.

It’s not necessarily the work I’m afraid of, it’s the fear of not getting it back together correctly.
1989 Ski Nautique 2001, 940 hours
Back to Top
TRBenj View Drop Down
Grand Poobah
Grand Poobah
Avatar

Joined: June-29-2005
Location: NWCT
Status: Offline
Points: 21182
Post Options Post Options   Thanks (0) Thanks(0)   Quote TRBenj Quote  Post ReplyReply Direct Link To This Post Posted: October-28-2024 at 6:03am
The originals are switches and breakers. If replacing with switches, you’ll need to add breakers or fuses for electrical protection.
Back to Top
pjsmoreno View Drop Down
Senior Member
Senior Member


Joined: April-25-2016
Location: Liberty, Mo
Status: Offline
Points: 181
Post Options Post Options   Thanks (0) Thanks(0)   Quote pjsmoreno Quote  Post ReplyReply Direct Link To This Post Posted: October-28-2024 at 10:22am

When I did my dash 4 years ago. I cut the Led light wires and number them so that I can put them back correctly. At the time, I use butt connectors that press down onto the wires without removing the installation.  Since then I had no issues with those connections. They now have heat shrink butt connectors that will solder the cut wires back together.

Back to Top
Netdewt View Drop Down
Senior Member
Senior Member
Avatar

Joined: February-15-2010
Location: Minneapolis
Status: Online
Points: 222
Post Options Post Options   Thanks (0) Thanks(0)   Quote Netdewt Quote  Post ReplyReply Direct Link To This Post Posted: October-29-2024 at 7:36pm
Did you guys consult a wiring diagram at all, or just lots of tape with notes?

I’m not sure where I’d get a wiring diagram. Or if I could even read it.
1989 Ski Nautique 2001, 940 hours
Back to Top
KENO View Drop Down
Grand Poobah
Grand Poobah


Joined: June-06-2004
Location: United States
Status: Offline
Points: 11088
Post Options Post Options   Thanks (0) Thanks(0)   Quote KENO Quote  Post ReplyReply Direct Link To This Post Posted: October-30-2024 at 6:59am
Originally posted by Netdewt Netdewt wrote:

Did you guys consult a wiring diagram at all, or just lots of tape with notes?

I’m not sure where I’d get a wiring diagram. Or if I could even read it.

Here's your chance to find out

link to 89 dash wiring

It'll probably make you want to pull out the tape and write lots of notes Wink

The fuel gauge and hour meter locations in the diagram and your dash don't agree with each other. I think your dash is the way they were built
Back to Top
pjsmoreno View Drop Down
Senior Member
Senior Member


Joined: April-25-2016
Location: Liberty, Mo
Status: Offline
Points: 181
Post Options Post Options   Thanks (0) Thanks(0)   Quote pjsmoreno Quote  Post ReplyReply Direct Link To This Post Posted: October-30-2024 at 1:50pm

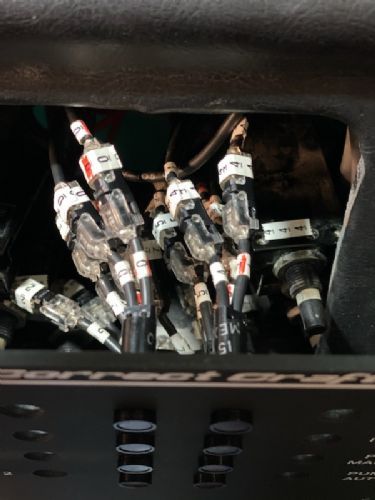

When I cut the wires, I used wire number marking tape. Made it simple to keep it straight on what you’re cutting. But there are other ways to label the wires when you cut them. Just keep track in the order you pull and cut so you get them back in the right location. The only other items you need to remove from the panel unless you have a radio, is the alarm buzzer and the ignition switch but they come out from behind the dash. Even though I had the electrical drawing of the dash, I didn’t used it.

Back to Top
